OEM MQB Brushless Fuel Pump Kit
OEM MQB Brushless Fuel Pump Kit
Couldn't load pickup availability
Yes the price went up a few bucks.... due to some external factors, the pumps are getting rather hard to source. We have a decent amount on the shelf, but order while you can!
***Tuning is required to use this pump properly. Damage may occur if run without accompanying ECU tune. Make sure to select front wheel drive or all wheel drive when ordering!
Boost your MQB EA888.3 engine with our high-performance low pressure fuel pump upgrade, engineered to deliver over 550 horsepower or seamlessly handle full E85 fuel. This complete, plug-and-play OEM Brushless LPFP kit features a fuel level sender connection for a clean, splice-free installation. Crafted with premium SS316 center hardware and E85-compatible submersible hose in the AWD model. It ensures durability and reliability. Our custom controller harness includes an integrated ground for enhanced protection against electrical issues.

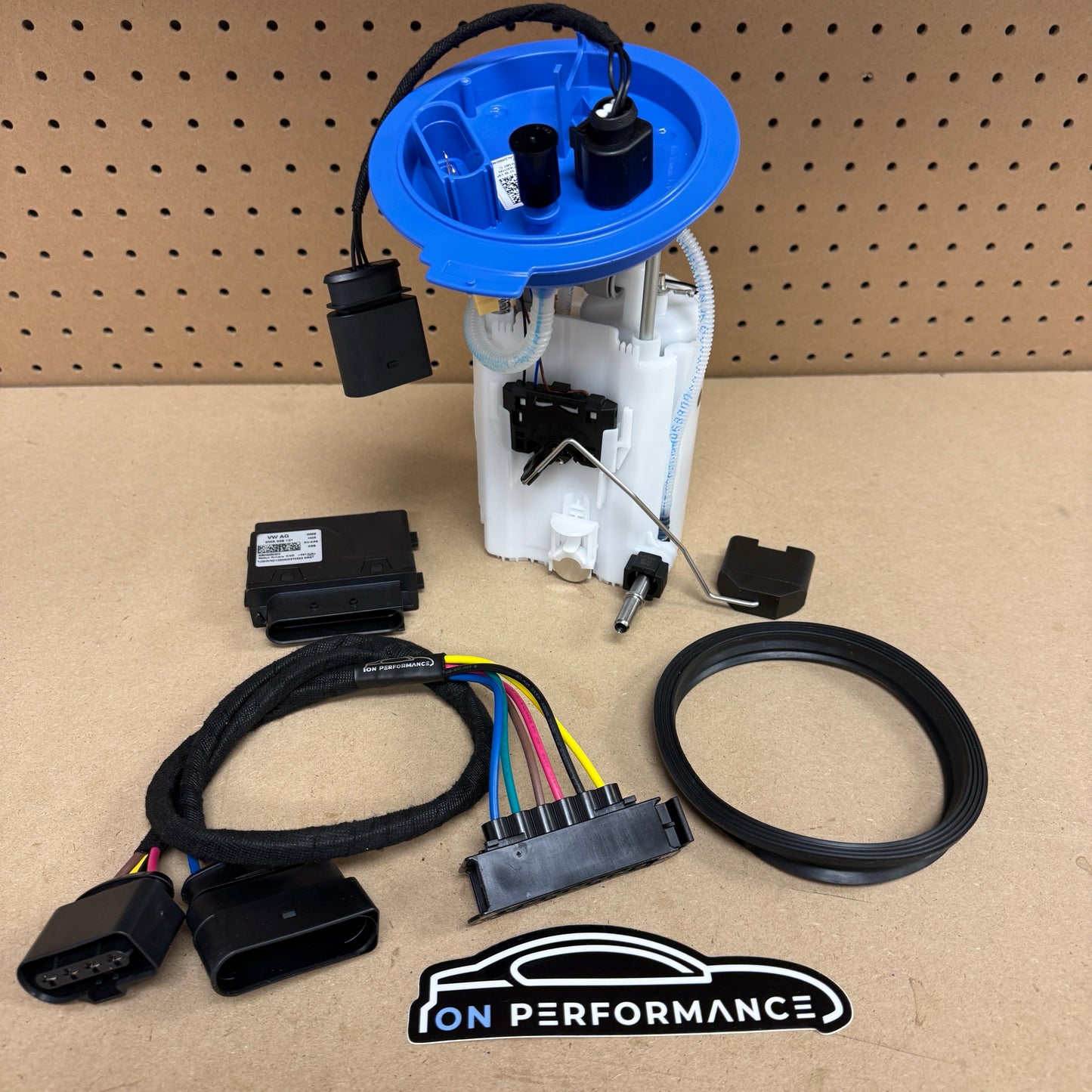

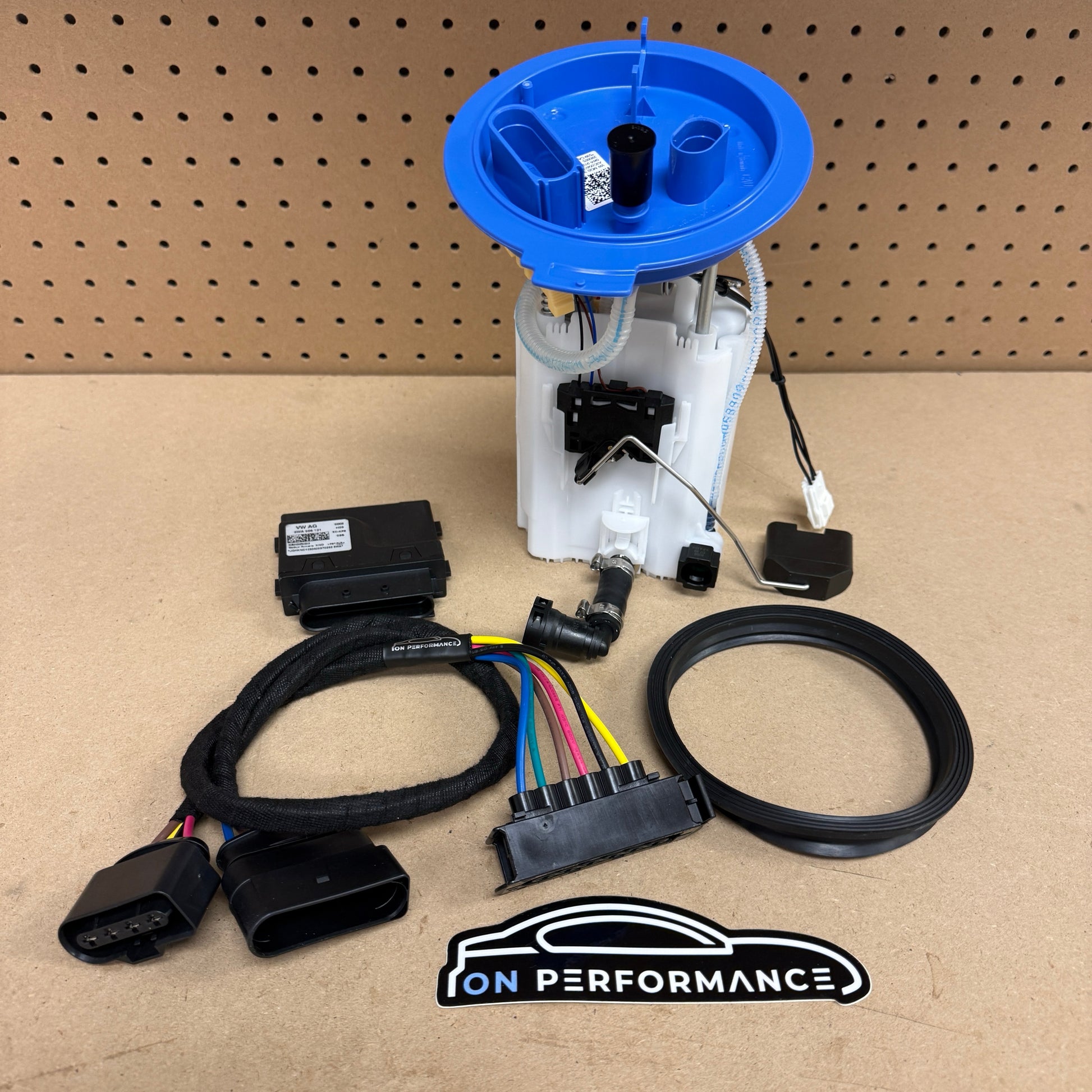

Kit includes:
- OEM Brushless LPFP
- OEM Brushless LPFP Controller
- OEM Fuel Level Sensor

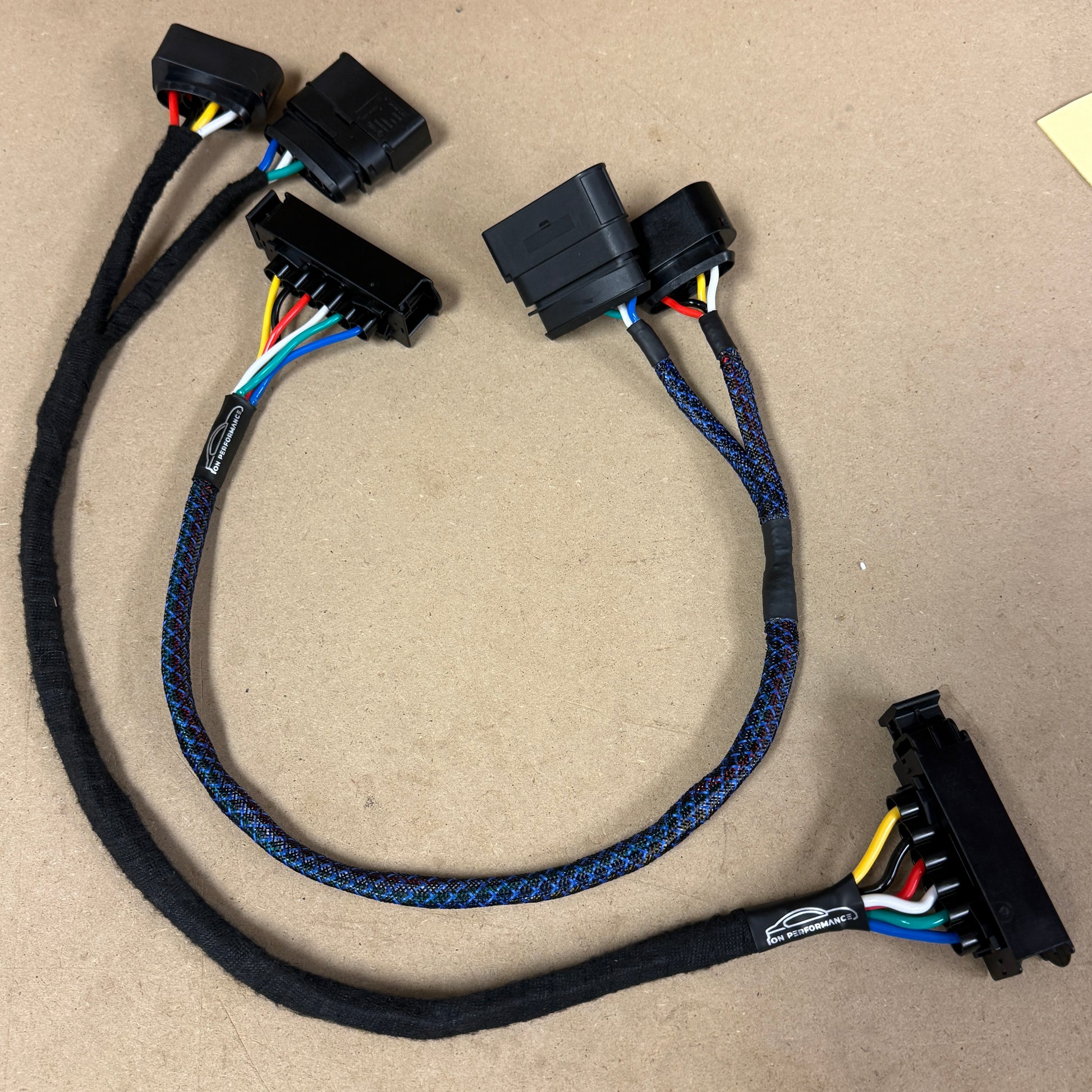

- Custom fabricated controller harness without external ground
- No splice drivers fuel level sender harness (AWD or FWD specific)
- Center jet-siphon return hardware or blanking plug (AWD or FWD specific)
-
Option to include OEM Tank Seal
Price Savings over Individual Parts Purchase:
OEM Brushless LPFP $198 + shipping (5WA919087C) Found Here!
OEM Fuel Level Sensor $80 + shipping (8V0919673D) Found Here!
LPFP Control Module $230 + shipping (4M0906093N) Found Here!
Brushless Pump Conversion Kit $200 + shipping (ON Performance) Found Here!
Total of $708 (before shipping from 4 places!)
This kit gets you everything for $660 + shipping (FREE if you’re in the continental US!) all in one box! Backed by our LIFETIME warranty!

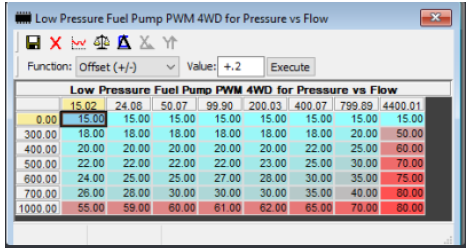

Calibration Data:
You'll need to adjust the axis to extend the g/min (x-axis) range. Most ethanol-powered hybrid systems operate with a fuel flow of 2000+ g/min, and the pump duty should ideally be within the 50-60 range. The table below provides a solid starting point.
Vehicle Compatibility
| Year Range | Make | Model | Trim / Engine / Drivetrain |
|---|---|---|---|
| 2015-2023 | Volkswagen | GTI | All (Mk7 / Mk7.5 / Mk8) 2.0T |
| 2015-2023 | Volkswagen | Golf R | All (Mk7 / Mk7.5 / Mk8) 2.0T |
| 2015-2019 | Volkswagen | Golf | All (Mk7 / Mk7.5) 1.8T |
| 2015-2017 | Volkswagen | Sportwagen | All (Mk7 / Mk7.5) 1.8T |
| 2017-2019 | Volkswagen | Alltrack | All (Mk7.5) 1.8T |
| 2021-2023 | Volkswagen | GLI | All (A7 / A7.5) 2.0T |
| 2015-2020 | Audi | A3 (8V / 8V.2) | FWD (1.8T) |
| 2016-2020 | Audi | A3 (8V / 8V.2) | Quattro (2.0T) |
| 2015-2024 | Audi | S3 | All (8V / 8V.2 / 8Y) 2.0T |
| 2016-2023 | Audi | TT | All (8S / 8S.2) 2.0T |
| 2016-2023 | Audi | TT-S | All (8S / 8S.2) 2.0T |
Note: Some ROW (Rest of World) FWD models may require a simple hose adapter.
